PY L-M-M

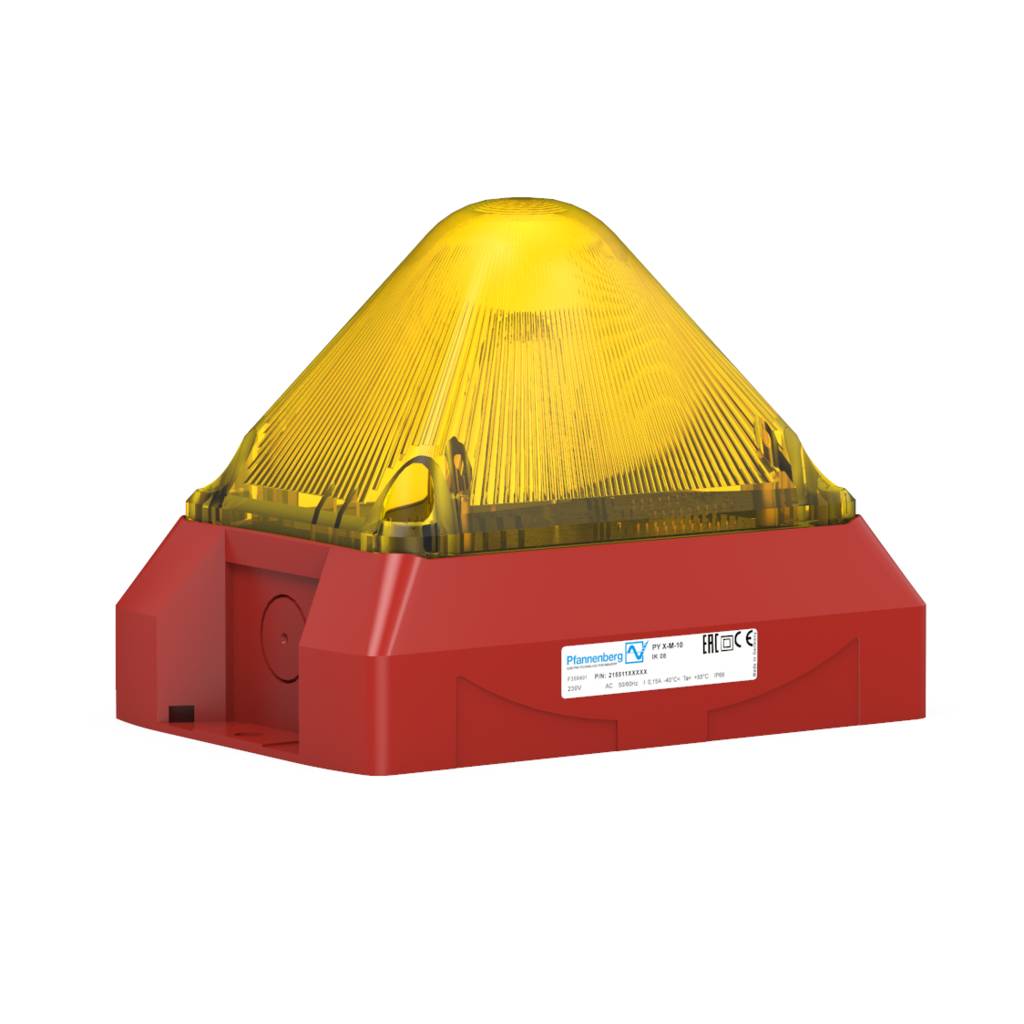

Function-monitored LED light for safety-critical applications

Function-monitored – The function-monitored PY L-M-M ensures more safety in sensitive applications where a signal must be sent to an external safety system, operating station or control centre in the event of a malfunction.
Selectable signaling modes – No matter which signaling mode is required - you are able to choose the one that fits to your needs.
- continuous steady on light (permanent warning or indication)
- blinking light (highly efficient for permanent warning)
- flashing light (higher perceptibility in alarm conditions)
Selectable blink & flash frequencies – Adaptable to all your applications - select the frequency your gadget requires and boost the perceptibility.
Multi-voltage-power supply – Plug and play - made to connect with different voltages. No need to stock various units - PYRA^® LED adapts to most machines and applications no matter the voltage!
Panel mount installation – Smart, modern and 360° visible - fully integrable into the design of your machine and equipment! The pyramid-shaped lens has ideal radiation characteristics and ensures all-round visibility.
3D-Coverage - Outstanding coverage area. Achieve maximum effectivness with signaling devices from Pfannenberg. Find out more.

warranty

protection system

NEMA 4/4X

impact-proof housing

brightness adjustable

operating temperature

UL approved

EurAsian Conformity

connector (optionally)

Pfannenberg 3D 覆盖范围

Size of visual coverage (A x B x C in meter)

	指示	警告	警报
红色	40.5 x 26.6 x 31.5	18 x 11.8 x 14	9 x 5.9 x 7
黄色	36 x 41 x 42.3	16 x 18.2 x 18.8	8 x 9.1 x 9.4
绿色	39.6 x 26.1 x 32.4	17.6 x 11.6 x 14.4	8.8 x 5.8 x 7.2
琥珀色	36 x 24.8 x 29.7	16 x 11 x 13.2	8 x 5.5 x 6.6
蓝色	18 x 11.3 x 13.5	8 x 5 x 6	4 x 2.5 x 3
无色	38.7 x 43.2 x 44.1	17.2 x 19.2 x 19.6	8.6 x 9.6 x 9.8

要显示其他值，请单击 CLEAR SELECTION（清除选择）字段。现在选择所需的镜头颜色或警报级别。

The figures shown are mainly for a quick orientation. For an individual and precise interpretation please use Pfannenberg Sizing Software (PSS).

技术数据

Electrical data	PY L-M-M
Rated voltage	115/230 V AC	120V DC	24V AC	12-48 V DC
Rated frequency	50/60 Hz	-	50/60 Hz	-
Operating range	95–265 V	108-132 V	21.6-26.4 V	10–60 V
Rated current consumption (max)	18 mA @ 230 V AC	18 mA @ 120 V DC	80 mA @ 24 V AC	63 mA @ 24 V DC

下载

描述	类型	大小
Conformity_CE_085506679_Rev03_Mar24_PY L-x.pdf	pdf	35 KB	Download
Conformity_UKCA_085507032_Rev01_Mar24_PY L-x.pdf	pdf	26 KB	Download
Supplement sheet PY L-M-M	pdf	240 KB	Download
QUICK GUIDE PY L-M (A)	pdf	1.4 MB	Download
MANUAL PY L-M(A)	pdf	2.4 MB	Download

描述	語言	类型	大小	下载
Product sheet	英语	pdf	360 KB	下载
3D-Models (IGS, SAT, STEP)	英语	zip	3.3 MB	下载
EAC certificate	俄语	pdf	300 KB	下载
UL certificate	英语	pdf	190 KB	下载
EPLAN macro EDZ	英语	zip	630 KB	下载

订购信息

Ordering details			PY L-M-M
Base colour	Light/lens colour	Rated voltage	115/230 V AC; 120V DC	12-48 V DC
Grey	Yellow	Article number	21553643004	21553813004
Grey	Amber	Article number	21553644004	21553814004
Grey	Red	Article number	21553645004	21553815004
Grey	Green	Article number	21553646004	21553816004

Other article numbers on request. Available lens colours are red, amber, yellow, green, blue and clear. Available standard base colours are grey and red.
