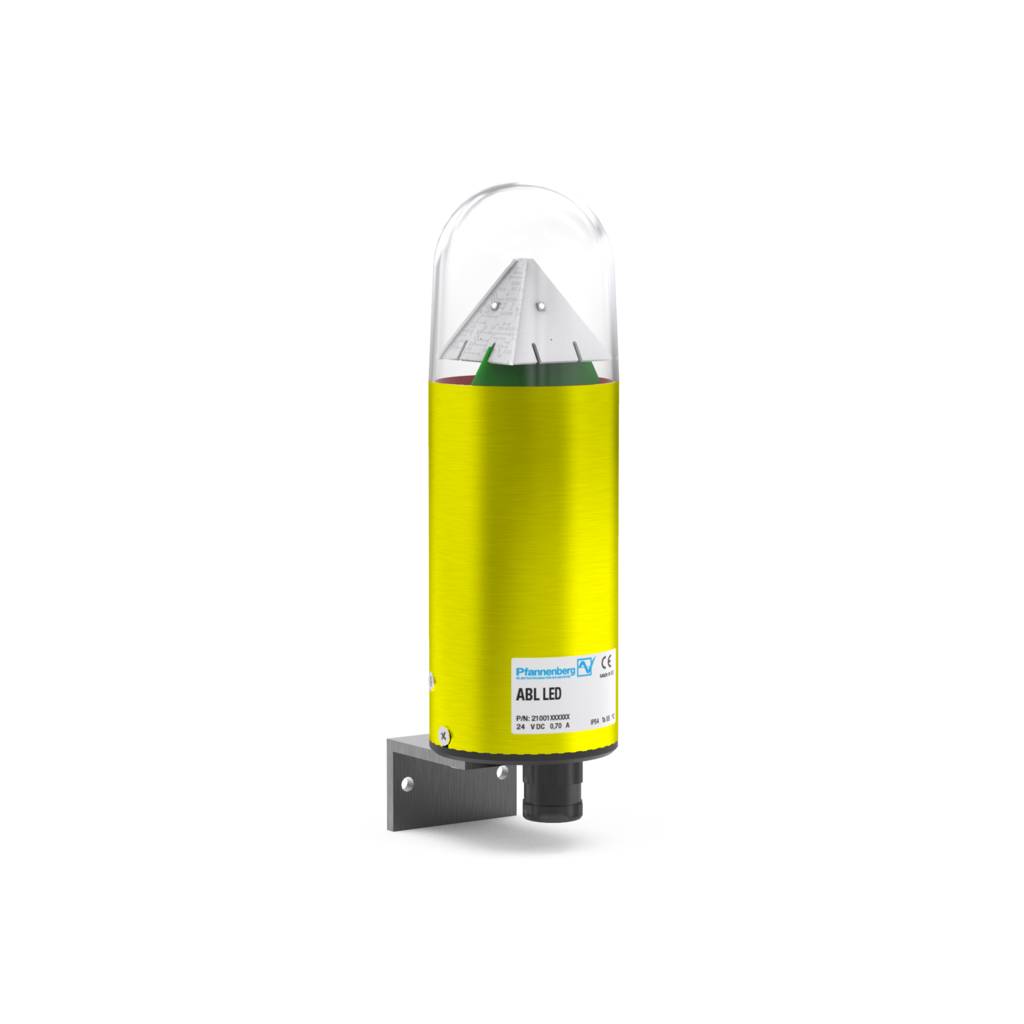

ABL/ABS LED-Hi

Multifunctional LED light
产品询价 PSS 选型软件

Extreme bright 75 cd LED light with large signaling effect, brightness adjustable

  • fully compatible with the established ABL/ABS xenon flashing light
  • metal housing – designed for tough requirements under industrial conditions
  • suitable for indoor and outdoor use
  • extremely insensitive to shock and vibration
  • internally and externally (DC) selectable operating mode as standard
  • 3 different signal options can be selected: 1) continuous light 2) blinking light 3) flashing light
  • 24 V DC devices as standard equipped with inrush current limitation
  • inexpensive and flexible; wide range power supplies as standard, even for high DC voltages applicable (90–253 V DC)
  • optional with protective cage
  • 3D-Coverage - Outstanding coverage area. Achieve maximum effectivness with signaling devices from Pfannenberg. Find out more.

protection system

operating temperature

connector (optionally)

EurAsian Conformity

warranty

Pfannenberg 3D 覆盖范围

Size of visual coverage (A x B x C in meter)

指示 警告 警报
红色
黄色
要显示其他值，请单击 CLEAR SELECTION（清除选择）字段。现在选择所需的镜头颜色或警报级别。

The figures shown are mainly for a quick orientation. For an individual and precise interpretation please use Pfannenberg Sizing Software (PSS).

技术数据

Electrical data ABL LED-HI ABS LED-Hi
Rated voltage 115/230 V AC/DC 24/48 V DC
Rated frequency 50/60 Hz –
Operating range 90–253 V 11–60 V
Nominal current consumption 50 mA @ 230 V AC 165 mA @ 24 V DC

下载

描述 类型 大小
Conformity_CE_085506685_Rev05_Mar24_Quadro_ABS(L)_LED_HI.pdf pdf 41 KB Download
Conformity_UKCA_085507041_Rev01_Mar24_Quadro_ABS(L)_LED_H.pdf pdf 30 KB Download
Manual ABL LED HI pdf 2.1 MB Download
描述 語言 类型 大小 下载

Product sheet
  • 英语
 pdf 340 KB 下载

Declaration of conformity
  • 英语
  • 德语
 pdf 58 KB 下载

EAC certificate
  • 俄语
 pdf 300 KB 下载

EAC 043/2017

fire alarm
  • 俄语
 pdf 1.0 MB 下载

EPLAN macro EDZ
  • 英语
 zip 730 KB 下载

MultiCAD-Data

订购信息

Ordering details   ABL LED-HI ABS LED-Hi
Lens colour Rated voltage 115/230 V AC/DC 24 / 48 V DC
yellow Article number 21118643000 21118633000
amber Article number 21118644000 21118634000
red Article number 21118645000 21118635000

选配件 / 配件

Protective cage ABL/S

产品优点

  1. 1

    Extreme bright

    Powerful 75 cd LED light with high signaling effect.

  2. 2

    Robust and reliable

    Sturdy metal housing made from resistant anodised aluminium inclusive metal mounting bracket. Optional with metal protective cage.

  3. 3

    Versatile applications

    3 selectable operating modes as standard. Continuous-, Blinking-, Flashing light in only one device. Brightness adjustable.

  4. 4

    Inexpensive and flexible

    Wide range power supplies as standard for simple and easy worldwide usage.

  5. 5

    Exceptional insensitive

    Resistant to  shock and vibrations for any indoor and outdoor application.

  6. 6

    Safe operation

    24 V DC device as standard with inrush current limitation
