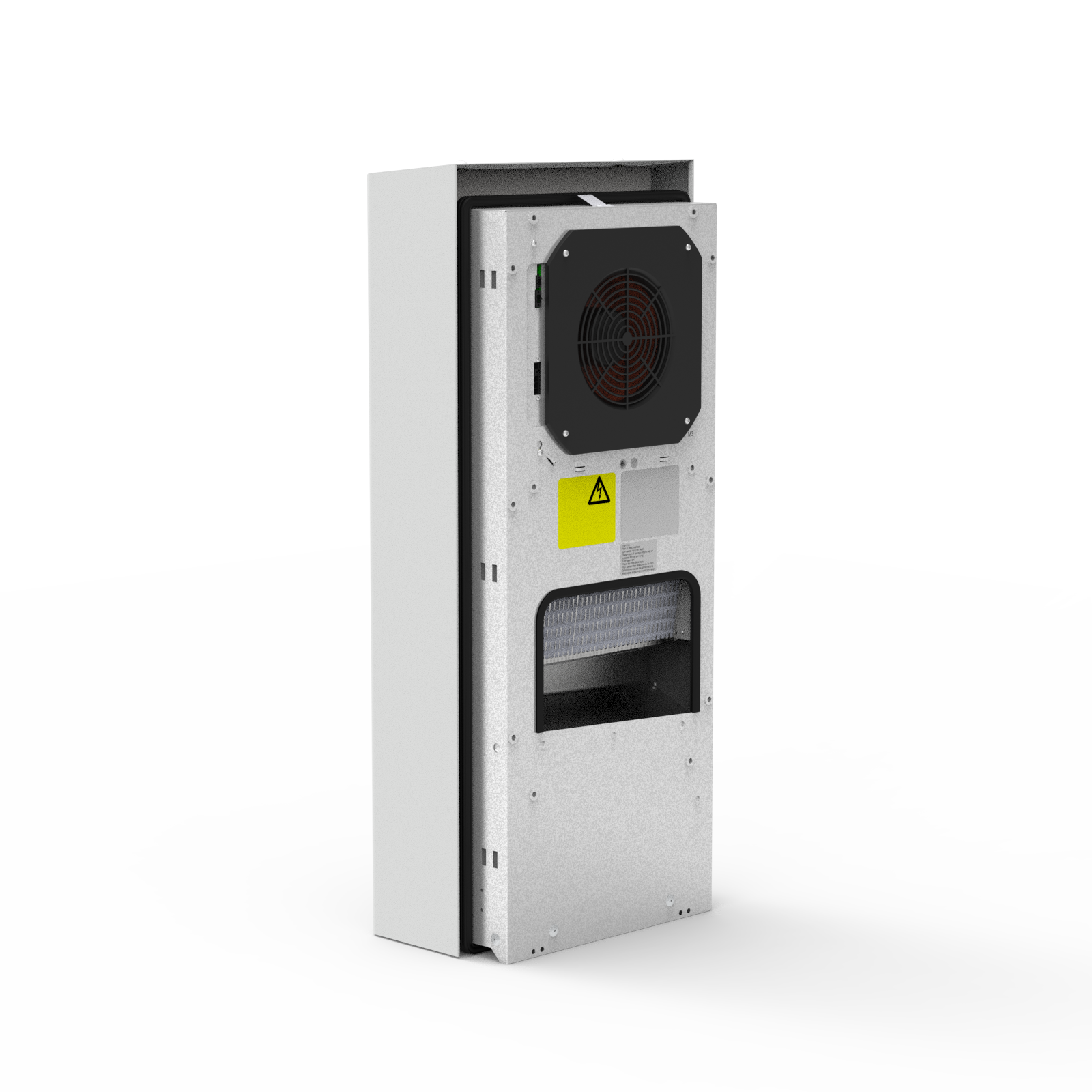

DTI/DTS 6301C

Green Series compact cooling units 1500 W

Highest energy efficiency for significant reduction of energy consumption to reduce operation costs
Reduction of refrigerant to lower the carbon footprint
UL listed in accordance with UL 60335 for long-term planning
Highest service ability
Optional controller version with Modbus RTU connection for easy machine integration
DTS units fit on 400mm enclousures
Toolless filter integration in seconds with accessory

F-gas ready coolant

operating temperature

protection system

top EER / energy saving

service friendly

tool-less filter mat changing

tool-less mounting (DTI)

side mounting (DTS)

Customizable

Data		DTI 6301C		DTS 6301C
Rated voltage ±10 %		AC 50/60 Hz
Rated voltage ±10 %		230 V	400/460 V 2~	230 V	400/460 V 2~
Cooling capacity according to EN 14511	A35/A35	1500 W
Cooling capacity according to EN 14511	A35/A50	1200 W
Ambient temperature		+15 … +60 °C
Refrigerant		R513A (GWP 631), 400 g
Degrees of protection according to EN 60529	IP 55	towards the electrical enclosure if used as intended by the manufacturer
Condensate management		integrated condensate evaporation system with safety overflow

Further technical details, performance curves and dimensions can be found in the Download Section on this page under Product Sheet.
