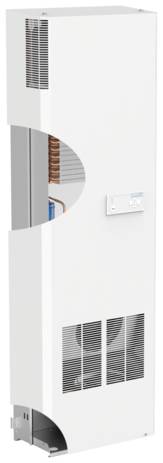

DTI/DTS 9341

Cooling units 1500 W

DTI: for partially recessed mounting in the door or side
DTS: for outer mounting on the door or side

Integrated Cooling System©: one mounting cut-out for 5 cooling performance ratings, mounted by 1 man in 2 minutes.
Condenser with 3 mm fin spacing, highly effective protection against strongly contaminated ambient air
Large distance between intake and exhaust vents, safe circulation within the electrical enclosure due to long passage of air, therefore hot spots are eliminated.
Integrated fault and door contact.
Optionally available with integrated condensate evaporation system.
DTS variants: cut-out compatible with PWS 7332 L air/water heat exchanger.

partially recessed mounting (DTI)

side mounting (DTS)

protection system

large distance in /out

Data		DTI/DTS 9341
Rated voltage ±10 %		AC 50/60 Hz ¹
Rated voltage ±10 %		400 V 2~	230 V
Cooling performance according to EN 14511	A35/A35	1500 W
Cooling performance according to EN 14511	A35/A50	1200 W
Ambient temperature		+15 … +55 °C / +59 … +131 °F
Degrees of protection according to EN 60529	IP 54	towards the electrical enclosure if used as intended by the manufacturer

¹suitable for various supply voltages (see technical specific data sheet).

Further technical details, performance curves and dimensions can be found in the download section on this page under product sheet.

Further technical details and dimensions can be found in the download section on this page under product sheet.

描述	类型	大小
Conformity DTx 9xx1	pdf	55 KB	Download
Conformity_UKCA_085507005_Rev01_Mar24_DTI_DTS9xx1.pdf	pdf	37 KB	Download
Manual DTx 9x41	pdf	1.9 MB	Download
Supplem. DTS/I 92/9341 SC 230V	pdf	340 KB	Download
Supple. DTx 92/9341 SC 400V 2~	pdf	360 KB	Download

描述	語言	类型	大小	下载
Product sheet	英语	pdf	260 KB	下载
UL recognized certificate	英语	pdf	530 KB	下载

Further software tools for digital product integration into your planning and documentation (such as Eplan macros) can be found at MyPfannenberg.

Ordering details		DTI 9341
Type	Rated voltage	400 V AC	230 V AC
Standard Controller	Article number	13269349055	13269341055

Ordering details		DTS 9341
Type	Rated voltage	400 V AC	230 V AC
Standard Controller	Article number	13289349055	13289341055

1

Standard cooling unit

with an attractive price-performance ratio for safe cooling of industrial switch cabinets.
2

Tool-free mounting (DTI)

by 1 person is possible in less than 3 minutes with 55 % lower mounting costs.
3

Condenser

with large fin spacing enables very long maintenance intervals even without additional Nano coating.
4

Large distance between intake and exhaust vents

for safe air circulation and elimination of hot spots.
5

Mounting auxiliary edge

allows the cooling unit to stand freely when unpacking and before installing, and prevents the unit from slipping out uncontrollably during installation into the mounting cut-out by 1 person.
6

Spring plate (DTI)

enables 1 person to install the cooling unit. This prevents it from falling out when unsupervised.
7

Highest variability

due to cut-out compatibility for up to 4 performance classes.
8

Integrated sealing (DTI)

finished and perfectly mounted.
9

Integrated door and failure

for automatic stand-by mode, if the door is open and opening of a relay as a centralised fault indication, in the event of no voltage supply, temperature too high or too low, temperature sensor is defect or short circuit in the air circuit for example.
